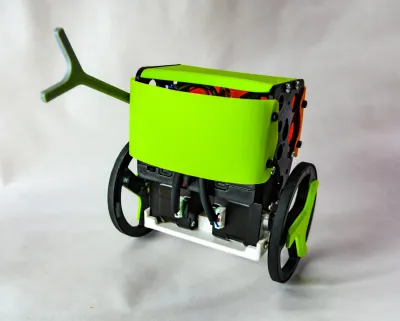

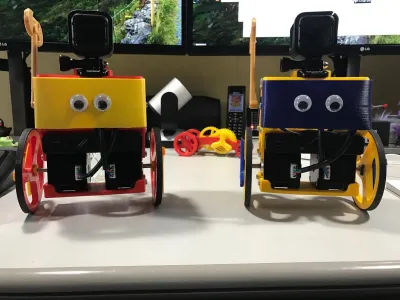

B-robot EVO 2:

Extremely fast, stable and customizable self-balancing robot. Check the robot in action!

The B-robot EVO 2 is an OPEN SOURCE, arduino based self-balancing robot with many features (take a look at the description below) Now with battle arms and add-ons to fight another robots (or stand up when you fall).

Remotely controlled using your smartphone or tablet (WIFI).

This robot is the natural evolution of the B-robot ORIGINAL and uses the same electronics and motors you would need to create the:

Air Hockey Robot

Sphere-O-Bot (eggbot MOD)

iBoardbot

PyBot Robotic Arm

Camera Slider Robot

Getting tired of one robot? Create another just printing the 3D parts!

B-robot EVO 2 is an Arduino based robot. An Open software and hardware creation. You can easily modify its behavior changing the acceleration/speed/stability parameters in the Arduino CODE or in real time via the CONTROL APP.

New features:

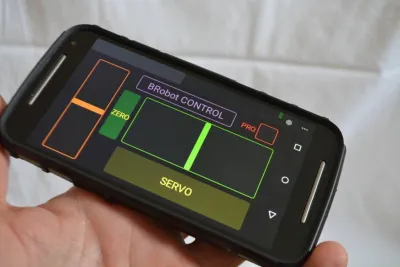

Control it using your smartphone/tablet via the free APP on GOOGLE PLAY (for Android or in Apple´s STORE for iOS devices

Google Blockly controllable!

Perfect to have fun as you learn robotics (Take a look at the Robotics Challenges! )

Now can use regular AA batteries (or a 3 cells LIPO battery)

Two SERVO outputs (one used for the ARM)

Easier to print and using less plastic

PRO MODE can be activated from your smartphone/Tablet (increased agility and velocity)

Increased WIFI range (up to 40 meters )

NEW: Create your own bumper with the Thingiverse customizer!

NEW: New wheel model for nytrile o-rings [V11]

NEW: New 100% 3D printed bumper for the front and back side "BUMPER 3D printed V1"

What you need to print:

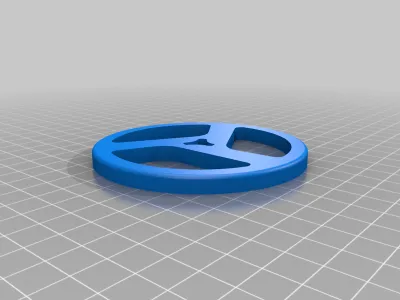

2x Wheels

2x Hub

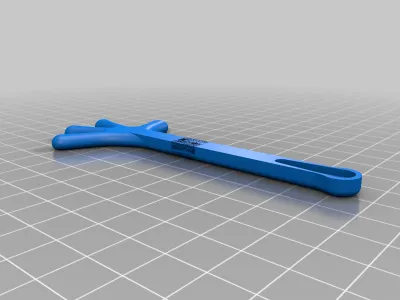

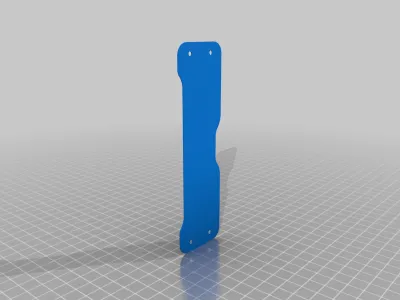

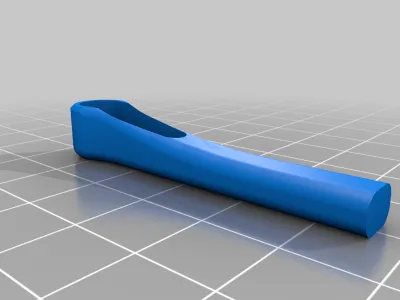

Arm

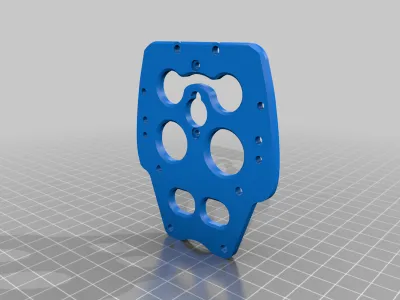

2x Side Panel

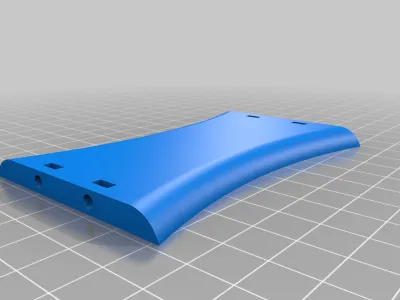

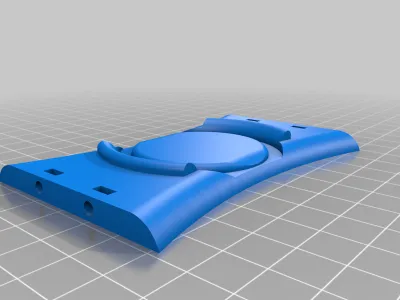

Top Shelf

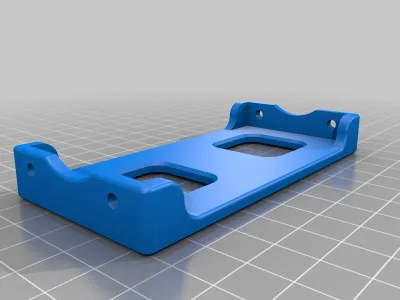

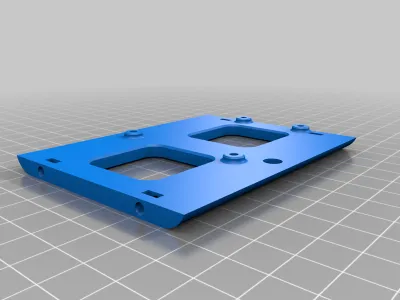

Motor Shelf

Electronics Shelf

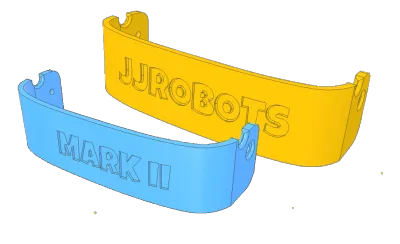

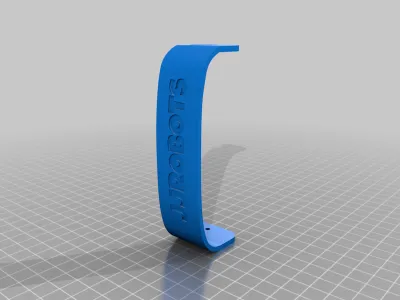

2x Bumpers

--------------------------------------------------

ADD-ONS:

OPTIONAL: 2x Bumper (TOP FRONT Bumper)

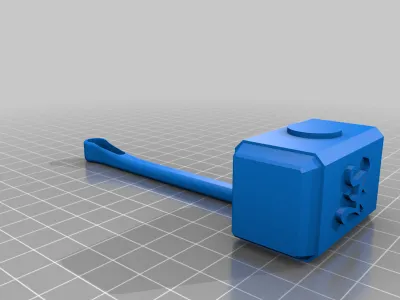

OPTIONAL: Battle arm: Thor hammer

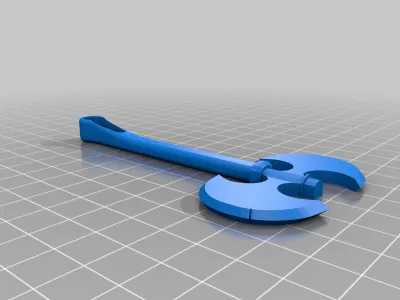

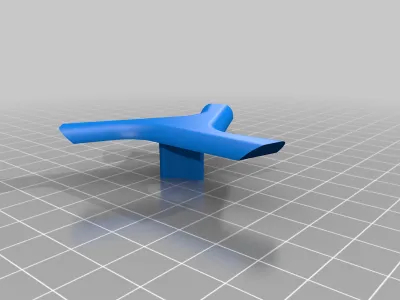

OPTIONAL: Battle arm: War Axe

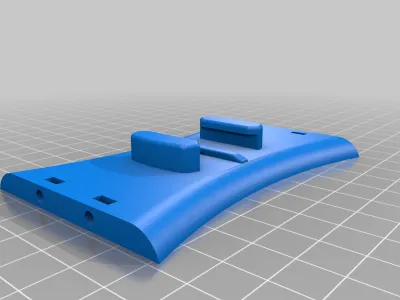

OPTIONAL: GoPro camera support

OPTIONAL: Soda Can Top shelf support

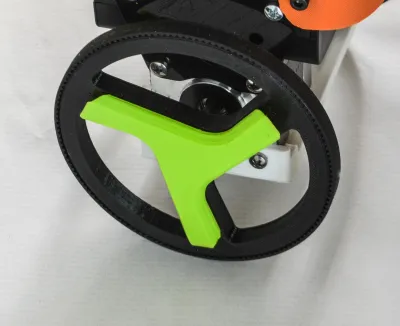

OPTIONAL: O-ring Wheels (x2)
