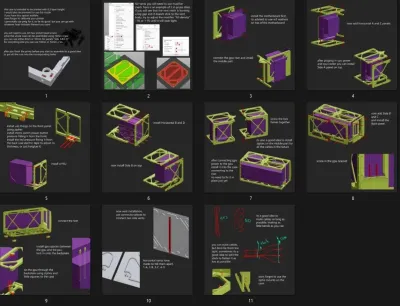

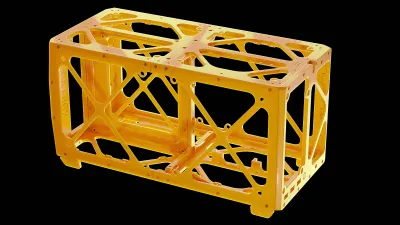

Fully 3d printed; Easily editable to suit your size needs; Very rigid; Perfect for travelling in a backpack; Fully protected with dust filters; Easy cable management; Great temperatures; All components are securely mounted; .STEP and .STL files with .Plasticity file attached; Full assembly manual.

printed with NO supports and post processing needed; All parts are in print ready position; Less than 1kg of filament; Longest part is 191mm so it will fit any 200x200 or larger print beds; Can be assembled with only m3x10 socket head screws with inserted nuts (side panels 8 or 10mm, everything else 10 or 12mm).

Nothing screws in directly into the plastic, meaning it can be reassembled however many times you want without loosing any strength; Best with 20cm reversed GPU riser; A mouse micro switch as a power button; Almost any USB variant can be used for the front IO; Can be done with any power cable; Will fit almost any cooler intended for itx builds.

Many months of work, 4kg of material wasted on various prototypes, and its here, i still cant believe im finally preparing it to be shared. Ill hope you will love it!

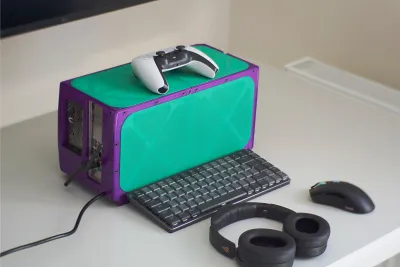

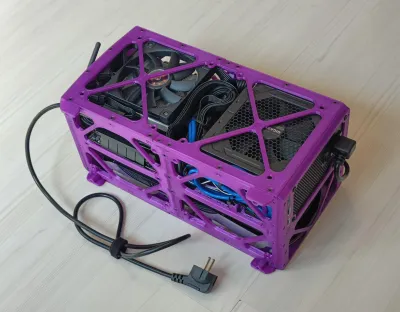

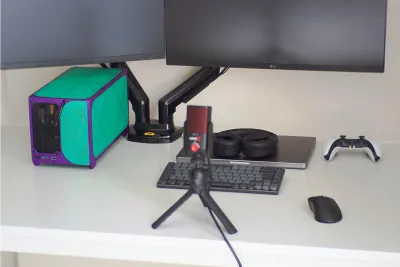

My build is ZOTAC RTX 4090 Trinity OC, 2tb nvme, 64gb ram, 13700, DeepCool AN600, Gigabyte P1000GM.

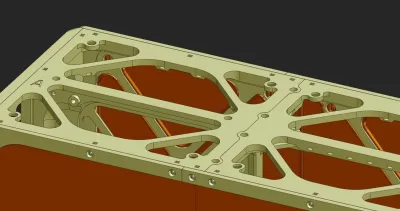

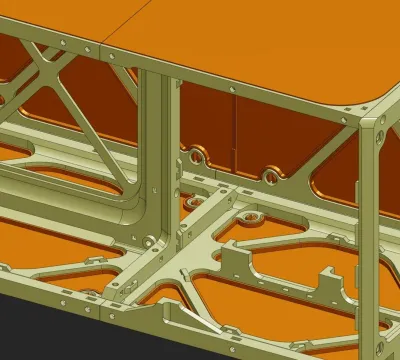

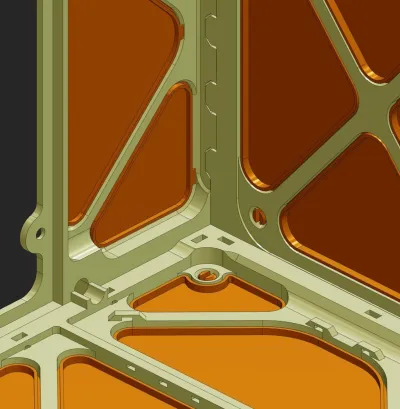

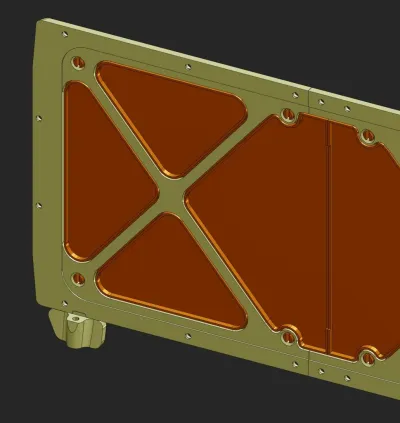

Fully designed in Plasticity.

https://www.thingiverse.com/thing:6655149
